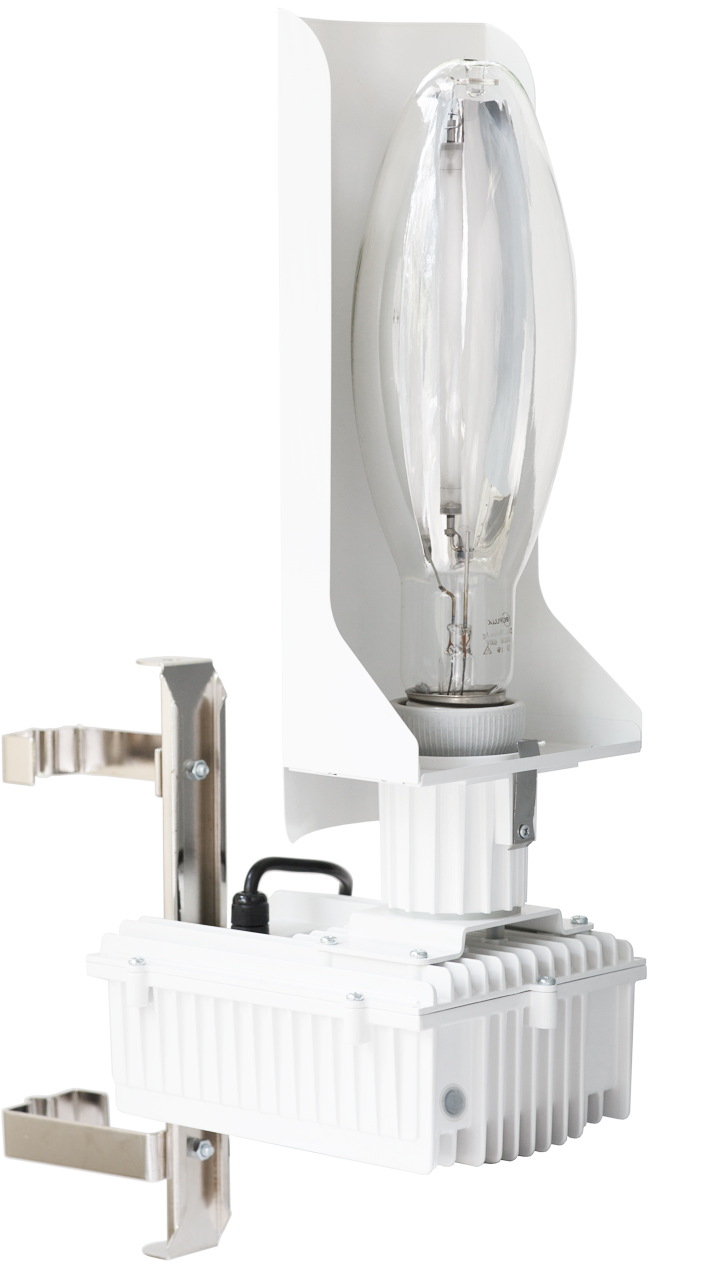

Greenhouse irradiator 1000 W
Luminaire
ЖСП25M-1000
Reflector lamp
REFLUX Ag 1000W 400V
The irradiator with a reflector lamp of Reflux Ag 1000W 400V type is a worthy competitor to foreign luminaires with a power of 1000 W. It is widely used for growing seedlings, lettuce and roses in industrial greenhouse complexes.
The new irradiators of ЖСП25M series, with two-phase electronic ballasts and completed with sodium Reflux Ag 1000W400V lamp produced by Reflux company, have several advantages over the previous version of ЖСП 25 irradiators.
The luminaires are supplied with a 0,8 m long three-core cable. The luminaires can be equipped with the traditional E40 rotatable lamp holder as well as with PGZ self-focusing lamp holder, which makes the lamp installation easy and convenient, and allows to precisely direct and focus the light flux of the irradiator. There is a LED status indicator on the luminaire housing, which, in the event of lighting point malfunction, indicates the type of error. It is possible, at a customer request, to equip the irradiators with an external conjunction box and 3 WAGO terminals.
In the new version of the luminaire, electronics unit moisture protection is reinforced. One package contains 2 luminaires and 2 pendant systems (box dimensions 38 * 26 * 25 cm), lamp’s covers are supplied in a separate package (10 pcs. in a box).
Rated
lamp
power, W
lamp
power, W
Rated
voltage
of a system, V
voltage
of a system, V
Power
consumption, W
consumption, W
Power
factor
factor
Operating
current, A
current, A
Weight,
kg
kg
Luminous
flux, lm
flux, lm
PPF,
µmol/s
µmol/s
Rated lamp power, W
1000
Rated voltage of a system, V
400
Power consumption, W
1040
Power factor
>0,99
Operating current, A
2,6
Weight, kg
4,3
Luminous flux, lm
140 000
PPF, µmol/s
1 950
Light intensity distribution curve
Spectrum
